High Tensile Galvanized Steel Wire Thick Zinc Coating For Flexible Duct And Pipe

Product Categories

HUBEI FUXING NEW MATERIAL TECHNOLOGY CO.,LTD

Contact Now

Name: High Tensile Galvanized Steel Wire Thick Zinc Coating For Flexible Duct And Pipe
Brand: Fuxing
Price: 1 USD

Brand Name : Fuxing

Model Number : 2.0mm

Certification : ISO9001, CE, Lloyd's, ISO14001, OHSAS18001

Place of Origin : China

MOQ : 1 TONS

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 3000 Tons per month

Delivery Time : 20-30 Days

Packaging Details : Packin in Coils or Z2 Packing.

Steel Grade : Galvanized steel wire

HS Code : 72172000

Standard : ASTM, BS, DIN, GB, JIS

Alloy Or Not : Non-alloy

Raw Material : High Carbon Steel Rod

Surface : Galvanized Coated

Tensile Strength : 1520-1720MPA

Usage : Used For Hauling

Contact Now

PRODUCTS DESCRIPTION:

Product Name	High Tension Hot Dip Galvanized Steel Wire
Raw Material	65#, 70#, 72A
Surface Treatment	Hot dipped galvanized
Packing	Coil or roll packing, with woven cloth pack outside Or according to the customer’s request
Production qty	3000 tons/month
MOQ	1 tons
Delivery time	Within 20 working days after receiving deposit
Payment term	T/T, L/C
Application	Being used for acsr stranded conductors, ground wire in overhead power circuitry, amouring cable, electric cable ,agricultural using, vineyard using, fencing using and so on.

Technical parameters
Wire dia: 1.24-5.5mm; Tensile Strength:1520-1770Mpa

Nominal Diameter	Tensile Strength	Stress at 1% Elongation	Twist	Elongation	Standard
mm	Mpa	Mpa	Times/360°C	Lo=250mm	As per GB,EN,IEC,JIS,ASTM standard,as well as customer's request
1.24-2.25	≥1340	≥1170	≥18	≥3%
2.25-2.75	≥1310	≥1140	≥16	≥3%
2.75-3.00	≥1310	≥1140	≥16	≥3.5%
3.00-3.50	≥1290	≥1100	≥14	≥3.5%
3.50-4.25	≥1290	≥1100	≥12	≥4%
4.25-4.75	≥1290	≥1100	≥12	≥4%
4.75-5.50	≥1290	≥1100	≥12	≥4%

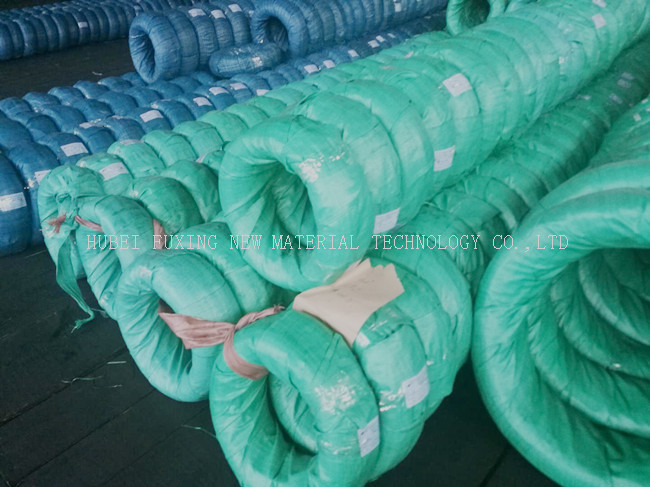

PRODUCT PHOTO
